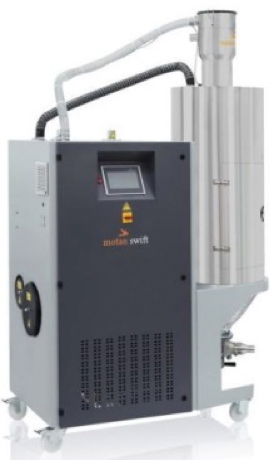

The COMPACT swift dryer is an integrated solution that combines drying and transport of raw materials with treated (dry) air, which eliminates any contact of the dried raw materials with a humid environment.

Dry air capacity: 50 m³/h

Volume of the drying bunker: 150 l.

Two loaders (for the drying hopper and injection molding machine) with a volume of 4 liters each.

Dew point monitoring function.

Modern 7" color touch screen display in 16 languages.

The device is mounted directly on the inlet flange of the processing machine and takes up very little space.

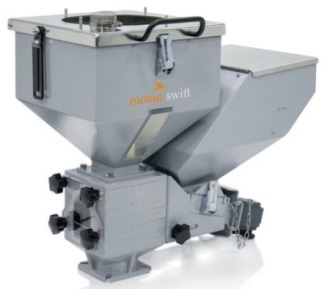

In addition, the dosing of dye and additives directly on the processing machine helps to achieve maximum mixture homogeneity and consistent product color repeatability.

Productivity: 1.52 - 30.33 kg / h (with a bulk density of 0.8 kg / dm³).

Dye hopper: 12 l.

Control unit with color touch display for one dosing module.

Mini-central loading system consisting of one vacuum loader with blower, which can be additionally equipped with 7 vacuum loaders.

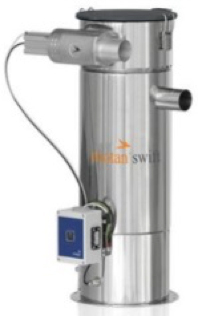

Vacuum loaders of the METRO swift HOS series are made of brushed stainless steel.

The one-piece design of the loader with a high-quality inner surface makes long, contamination-free operation possible.

The loader is equipped with a simple and convenient "O" type control unit.

The cover is free from hose and vacuum valve, convenient to maintain.

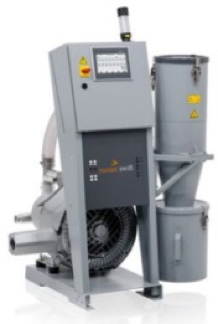

It is controlled from the 7” color touch panel on the METROVAC device, which combines the functions of a vacuum blower, a central filter and a control of the material supply system.

The 1.5 kW three-phase blower is quiet and maintenance-free.

Built-in VAC swift control for 8 vacuum loaders and 8 pipeline cleaning valves.
