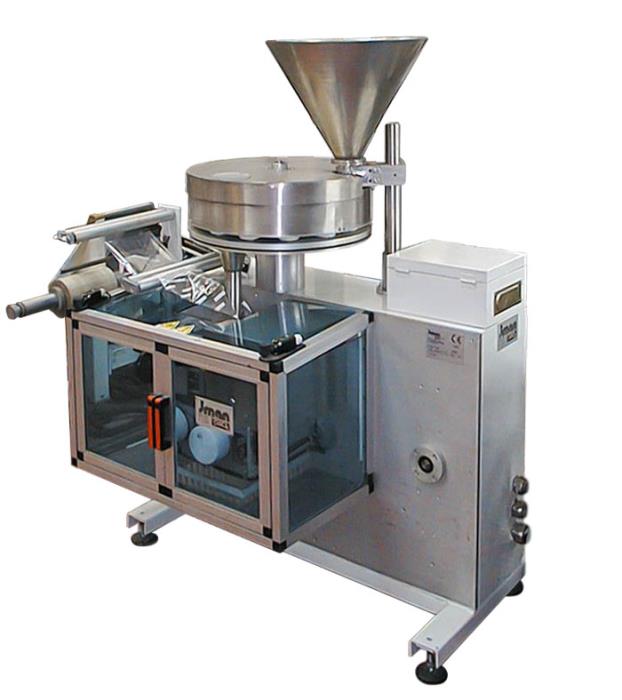

Ultravert

Continuous vertical bagging machine which performs high-speed bagging of bulk products such as peanuts, hazelnuts, cereals etc., or single products fed by a high-speed selector unit, e.g. ear plugs.
It can be synchronised with volume dispensers, multi-header weighing machines, picking devices.

Description

Characteristics

Ask question

  • Bearing structure in painted steel.
  •  Cantilever group installation.
  • Exceptionally thick aluminium front unit coupling plate.
  • Self-centering reel holder unit for reels up to 300 mm wide.
  •  Adjustable forming machine for bags of different widths.
  • Bag length settable via PLC.
  • Interchangeable product outfeed forming tube.
  • Longitudinal sealing unit with two couples of heat sealingwheels and one folding wheel.
  • Rotating transversal sealing unit with one or two heatedspatulas, controlled via PLC.
  • Longitudinal and transversal sealing unit drive system withPLC controlled servo motors.
  • Accident prevention guards.
  •  Rockwell Allen Bradley® Contrologic PLC.
  • HMI touch screen Hakko.
  • Production up to 170 bags/minute.
  • Machine built according to CE Standards.
