Servoflex PRO
Rotating horizontal wrapping machine with reel holder from above and below, suitable for wrapping products with heat sealing film.

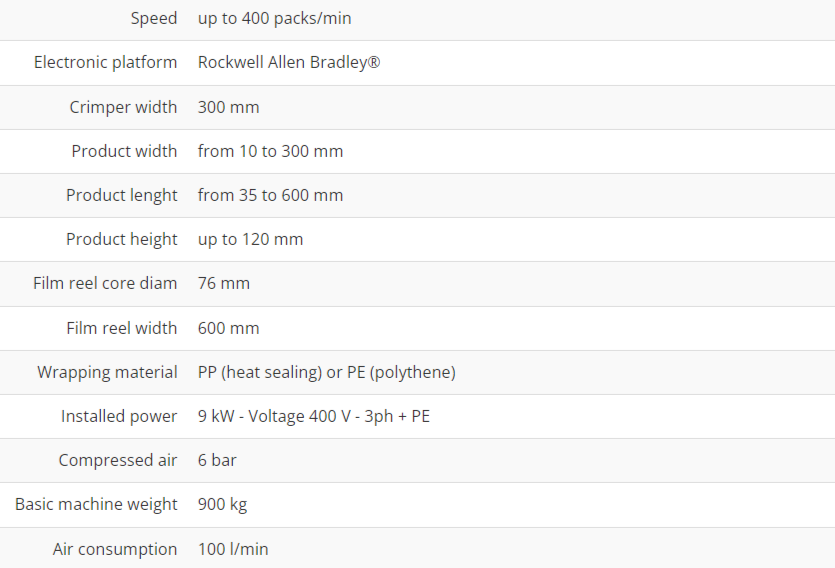

Speed Up to 400 packs/min
Product Width From 10 mm to 300 mm
Product Length From 35 mm to 600 mm
Product Height Max 120 mm
Film Reel Width Up to 600 mm
Description
Characteristics
Ask question
A wide range of possibilities
- RAL 9007 painted metalwork base and reel holder support.
- Paddle wheel conveyor belt for loading products 2500 mm in length with 300 mm wide stainless steel belt.
- Reel holder accessed from above or below, for reels of up to 600mm in width.
- Universal forming machine with manual width adjustment.
- Horizontal sealing unit with 300 mm long sealing spatulas (optional up to 350 mm).
- Longitudinal sealing unit with two pre-heated drive wheels, two heat sealing wheels and two flap folding wheels.
- Plastic material incident guards with relative safety micro switches.
- Output conveyor belt, 900 mm long.
- Axis control for the machine drive motors:
1) Cutting-sealing movement drive motor
2) Longitudinal sealing and output belt drive motor
3) Paddle wheel conveyor belt drive motor
4) Conveyor belt below the wheels drive motor (PBB version only) - Management PLC with Imanpack operator interface.
- Machine built according to CE standard.
Accessories
- Automatic feeding.
- UVC lamps for film sterilization.
- Gas injection.
- Oxygen residual continuous analyzer.
- Mechanical bellows.
- Labelling systems.
- Print-on-film systems.
- Wire cutting and film trimming device.
