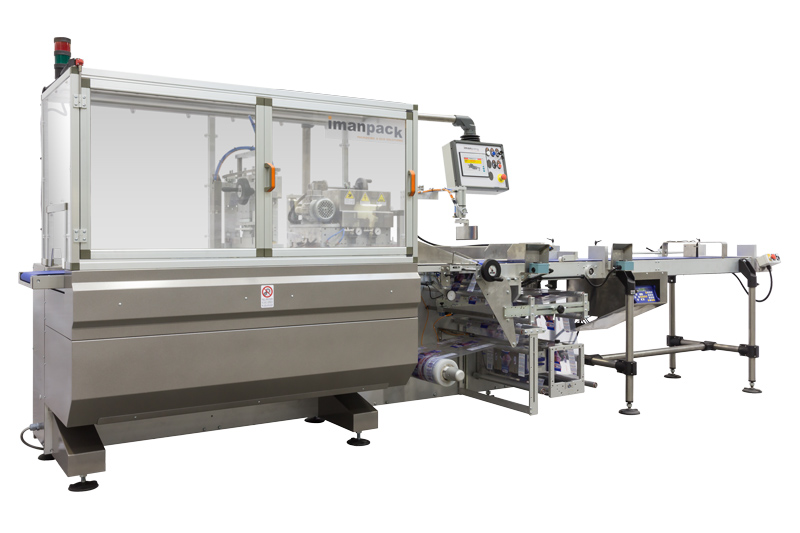

Servoflex Intermittent
Intermittent horizontal wrapping machine with reel holder from below suitable for wrapping products with heat sealing polyethylene film.
Speed Up to 20 packs/min
Product width From 10 mm to 400 mm
Product length From 35 mm to unlimited
Product height Max 120 mm
Reel Width Up to 600 mmт
Description
Characteristics
Ask question
- RAL 9007 painted metalwork base and reel holder support.
- Sheet metal surface to load on film, 1300 mm length and 400 mm width, with phasing device.
- Reel holder from below for reels up to 600 mm wide (optional up to 900 mm).
- Universal forming machine with manual width adjustment.
- Longitudinal hot air sealing unit with film feed, height-adjustable.
- Intermittent transversal sealing unit with 400 mm sealing bars.
- Electric-impulse sealing device controlled from PLC.
- Cutting-sealing system with pneumatic controlled closure.
- Sealing temperatures managed by electronic temperature controllers.
- Plastic material incident guards with relative safety micro switches.
- Output conveyor belt, 900 mm long.
- Control for the machine drive motors:
1) Longitudinal sealing and output belt drive motor
2) Conveyor belt drive motor
3) Conveyor belt below the wheels drive motor - Management PLC with Imanpack operator interface.
- Machine built according to CE Standards.
Accessories
- Automatic feeding.
- UVC lamps for film sterilization.
- Gas injection.
- Oxygen residual continuous analyzer.
- Mechanical bellows.
- Labelling systems.
- Print-on-film systems.
- Wire cutting and film trimming device.
