Pick Me

Vertical wrapping machine with PLC control suitable for heat-sealable materials.
Specifically designed for wet wipes packaging.

Bag size
Min 100 mm x 50 mm
Max 185 mm x 95 mm
Speed
Up to 20 bags/min

Download a brochure with a description (en)

Description

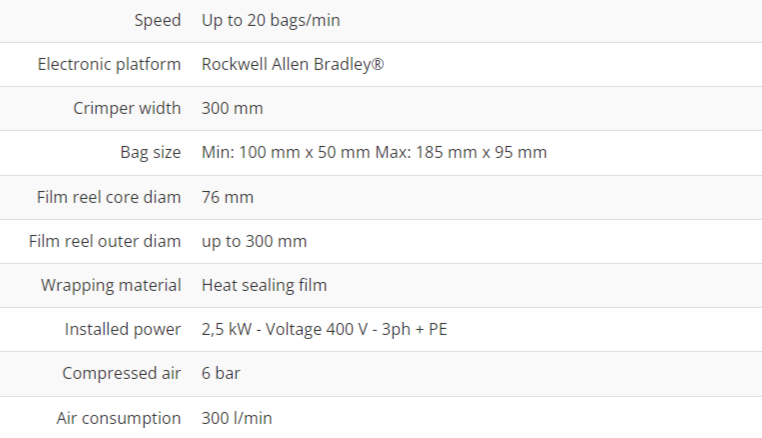

Characteristics

Ask question

  •  Machine frame in anodized aluminium.
  • Reel dimensions: diameter Ø up to 300 mm, width up to 800 mm.
  • Reelholder with motorized rollers with millimetric centering of the film as regard to the forming tube.
  • Film draw by means of toothed belts.
  • Bag lenght adjustment by encoder.
  •  Controlled by Rockwell Allen Bradley® PLC.
  • Cross sealing unit with 300 mm width sealing jaws.
  • Stainless steel forming tube with rectangular section.
  • Longitudinal sealing unit with sealing jaws up to 500 mm width.
  •  Mechanical gusset.
  • Temperature control by PLC.
  • Double unwinding system suitable to make bags with length double than the nominal one.
  • Machine built according to CE Standards.

Accessories

  • Lids feeding and orientation device.
  • Liquid doser with pump.
  • Photoelectric cell for print registration.
  • Pneumatic die-cut unit.
  • Labelling machine.
