Moonlight Pbb Multipack

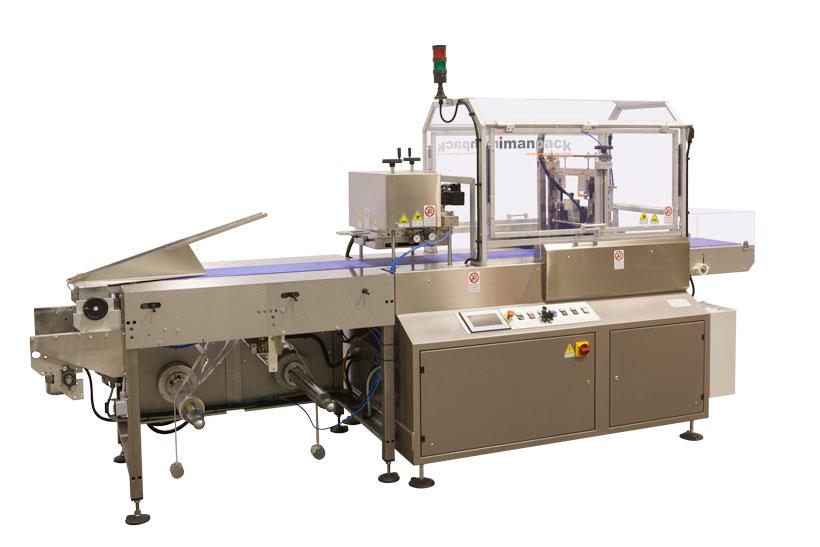

Horizontal wrapping machine with extended sealing time and 4-axis electronic control. It is available in different versions, for polyethylene film or heat sealing materials, with reel loaded from top or bottom and in a stainless steel version.

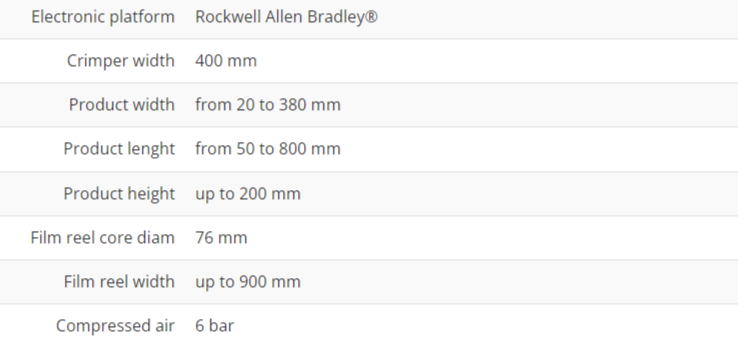

Product range
Length: from 50 to 800 mm
Width: from 20 to 380 mm
Height: up to 200 mm

Description

Characteristics

Ask question

  • Stainless steel structure.
  •  2800 mm infeed conveyor belt.
  • Transversal sealing unit with 400 mm sealing spatulas.
  •  Universal forming unit adjustable using a hand-wheel.
  • Reel holder from below for reels up to 900 mm wide.
  • Movement axes control via four brushless motors for:
  •  Transversal sealing unit
  • Longitudinal sealing wheels
  • Conveyor belt below the sealing wheels
  •  Feeder conveyor belt
  •  Longitudinal sealing unit adjustable in height.
  •  Transversal sealig unit adjustable in height.
  • Cutting-sealing unit with handle maker device.
  •  Control panel on machine frame.
  •  Sealing time adjustable by PLC.
  • Machine built according to CE standard.

Accessories

  • Automatic feeding.
  • UVC lamps for film sterilization.
  • Gas injection.
  • Oxygen residual continuous analyzer.
  • Mechanical bellows.
  •  Labelling systems.
  • Print-on-film systems.
  • Wire cutting and film trimming device.
