Moonlight LTS Pba-Pbb

Horizontal wrapping machine with extended sealing time and 4-axis electronic control. It is available in different versions, for polyethylene film or heat sealing materials, with reel loaded from top or bottom and in a stainless steel version.

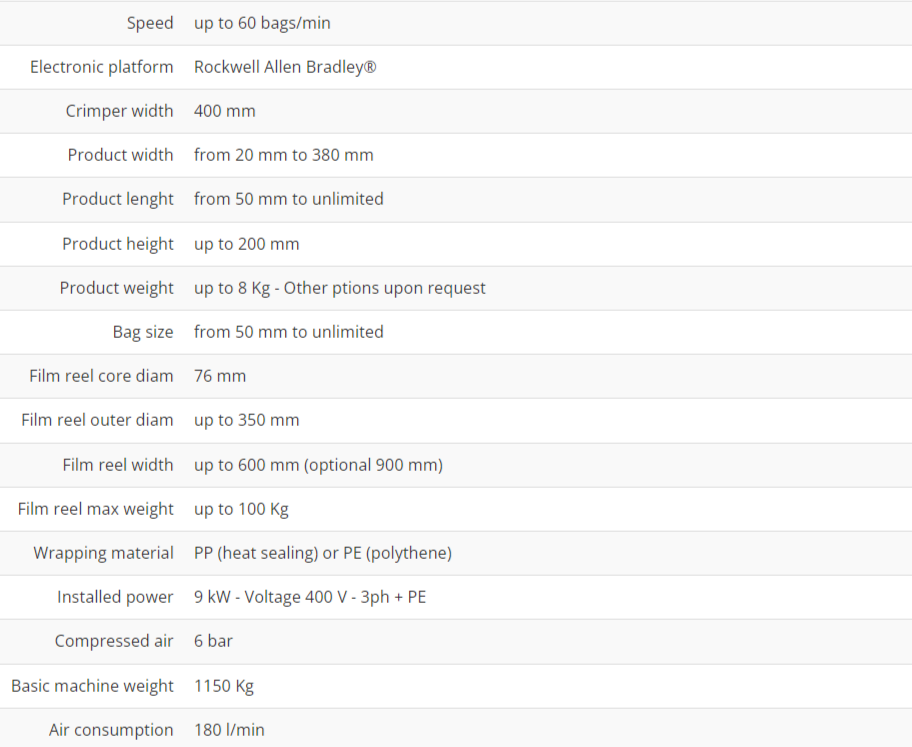

Speed
Up to 60 pck/min
Product Width
From 20 mm to 380 mm
Product Length
From 50 mm up
Product Height Up to 200 mm
Bag Length
From 50 mm up
Film Reel Width
600 mm (optional 900 mm)

Description

Characteristics

Ask question

  • Main frame and reel holder in stainless steel construction.
  •  2500 mm long chain pitch infeed conveyor.
  • Universal forming tunnel adjustable by handwheel.
  • Cross sealing jaws adustable in height (sealing jaws width max 400 mm).
  • Longitudinal sealing wheels for polyethylene film or heat sealing materials.
  • Axis control by brushless motors for:
  • Infeed conveyor
  •  Cross sealing jaws stroke
  •  Longitudinal sealing wheels
  •  Transport belt through the sealing jaws
  • Rockwell Allen Bradley® PLC control with touch screen user interface by Imanpack.
  • Machine built according to CE standard.

Accessories

  • Automatic feeder system.
  • UVC lamps for film sterilization.
  • Gas injection.
  • Oxygen residual continuous analyzer.
  •  Mechanical bellows.
  •  Labelling systems.
  • Print-on-film systems.
  • Wire cutting and film trimming device.
