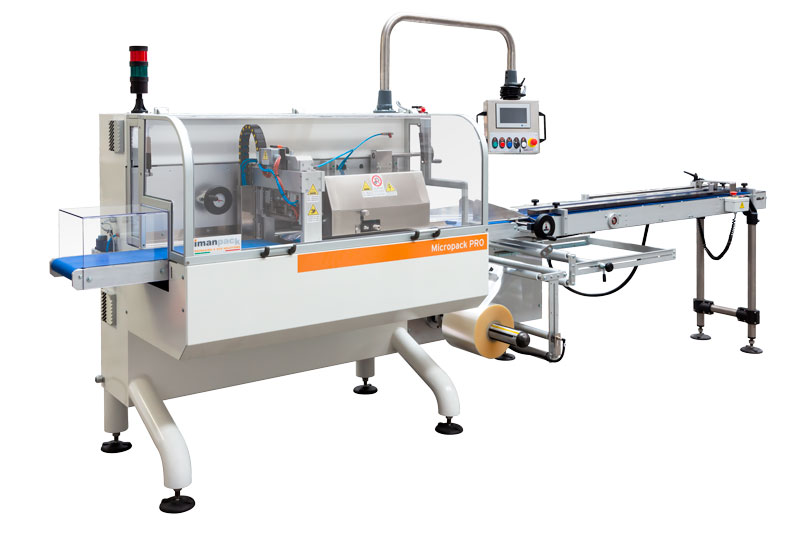

Micropack PRO Intermittent
Horizontal wrapping machine with extended sealing time and reel holder from below for polyethylene film. Exceptionally rapid format changes make it ideal for small production batches. The machine immediately changes format as soon as the new pack data is entered, and no further action is required of the operator.
Suitable for both heavy and delicate products.
Description
Characteristics
Ask question
A wide range of possibilities
- RAL 9010 painted main frame.
- Bottom reel holder 500 mm wide maximum.
- Cantilever reel shaft holder for reel 500 mm wide.
- Universal forming tunnel with manual width adjustment.
- Intermittent cross sealing unit with sealing jaws 250 mm wide and sealing wire-cut, by means of a special jaw, electrically heated, controlled by PLC.
- Cross sealing unit position adjustable by hand wheels.
- Longitudinal sealing unit with hot-air with sealing function and with film drawing.
- Safety guards in plastic material with safety switches.
- Conveyor belt under the sealing wheels for products feeding until sealing jaw.
- Outfeed belt 900 mm long.
- N. 2 servomotors for following movements:
- film feeding (wheels sealing unit) and belt under the wheels;
- product’s transport and feeding belt.
- N. 1 asynchronous motors for following movements:
- outfeed Belt.
- PLC (Rockwell Automation) with Imanpack customized keyboard (HMI).
- Electrical board on the machine frame.
- FESTO pneumatic components.
- Machine manufactured according to CE regulations.
- Installed power: 3 kW.
- Voltage: 400 V 3ph 50 Hz + PE.
- Compressed air: 6 bar.
