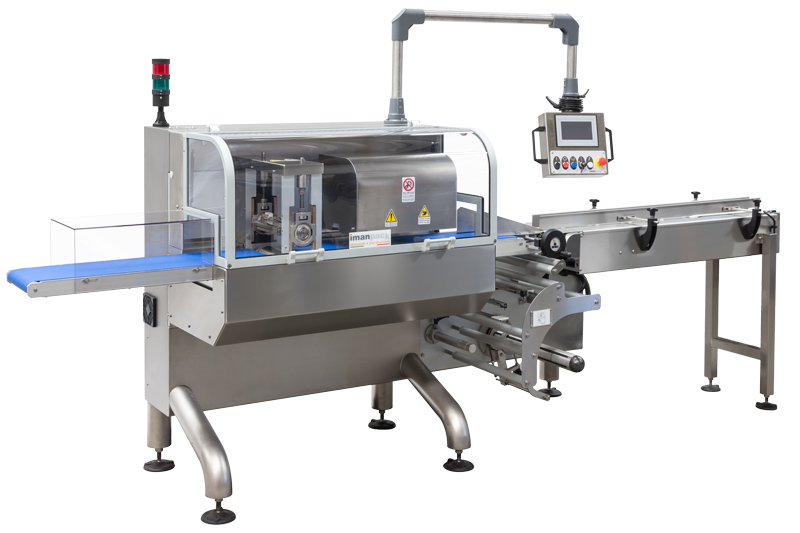

Micropack PRO
Rotary flow-wrapper suitable for wrapping solid products in general using heat sealing or polyethylene film. Control and command via PLC.
Can be connected to automated production lines.

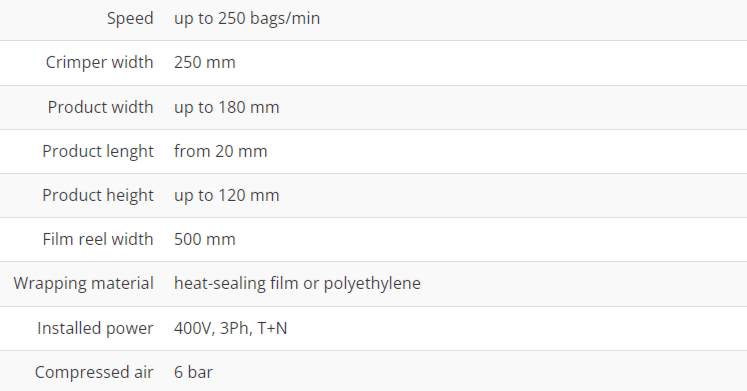

Product Range
Width: up to 220 mm
Length: from 20 mm
Height: up to 120 mm
Width + Height: up to 225 mm
Speed
Up to 250 bags/min
Description
Characteristics
Ask question
- Mainframe in painted steel.
- Paddle wheel conveyor belt 1500 mm long in AISI 304 steel.
- Food grade plastic rapid extraction product pushers.
- Electronic pitch adjustment.
- Top or bottom reel holder with pneumatic opening for reels up to 500 mm wide.
- Electronic torque limiter.
- Longitudinal sealing unit with pre-heated drive wheel, heat sealing wheel and flap folding wheel.
- Rotary cross sealing unit with 250 mm sealing jaw, with electronic thermoregulator control.
- Independent axes motors for:
- Conveyor belt
- Longitudinal sealing unit
- Cross sealing unit - Universal adjustable forming unit.
- Output conveyor belt, 1000 mm long.
- 7” touch-screen control panel.
- Plastic material incident guards with safety micro switch.
- Integrated electrical system detached from any mechanical parts.
- Machine built according to CE Standards.
Options
- Full AISI 304 inox version.
- Automatic loaders.
- Different conveyor belt lengths.
- Motorized reel unwinder with inverter.
- Printers and labellers.
- Motorized output conveyor belt with inverter.
- “No product - no bag” system.
