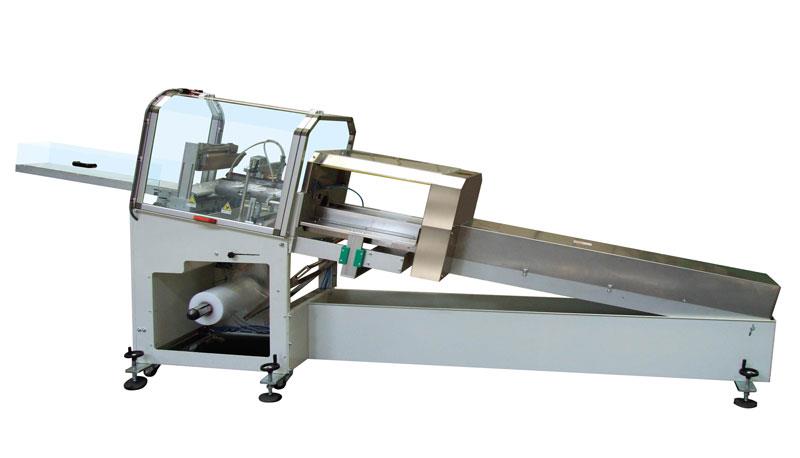

Lidpack

Lidpack was especially designed to pack stacks of plastic lids, small shallow containers, glass or plastic slides, bearing cages, seals and all kinds of unstable or unstackable products.

Diameter of round product
Min 40 mm - Max 150 mm
Film width
Max 600 mm
Product stack length
Max 780 mm (with double step)

Download a brochure with a description (en)

Description

Characteristics

Ask question

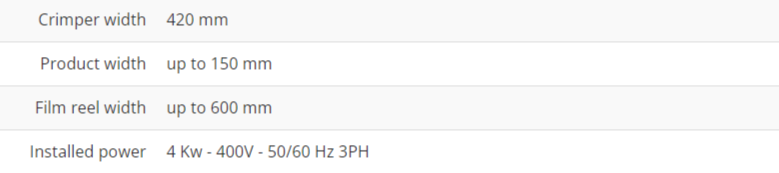

  •  Three axis servo motor controlled.
  • PLC control unit.
  • Longitudinal seal by impulse (bar length 420 mm).
  • Pneumatic wire cut cross sealing unit (controlled by thermoregulator).
  •  Exit conveyor for filled bags.
  • Installed power: 4Kw - 400V - 50/60 Hz triphase.

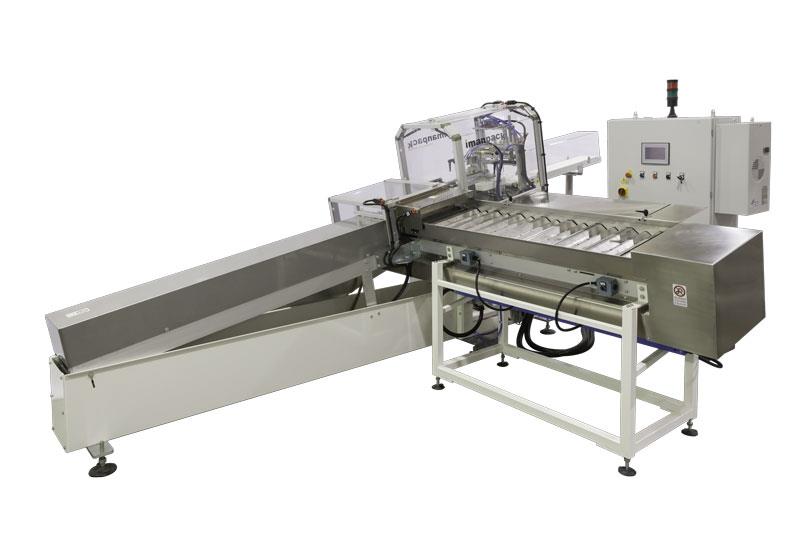

  • Automatic feeding system available depending on thermoforming requirements.
  • Machine built according to CE regulations.
