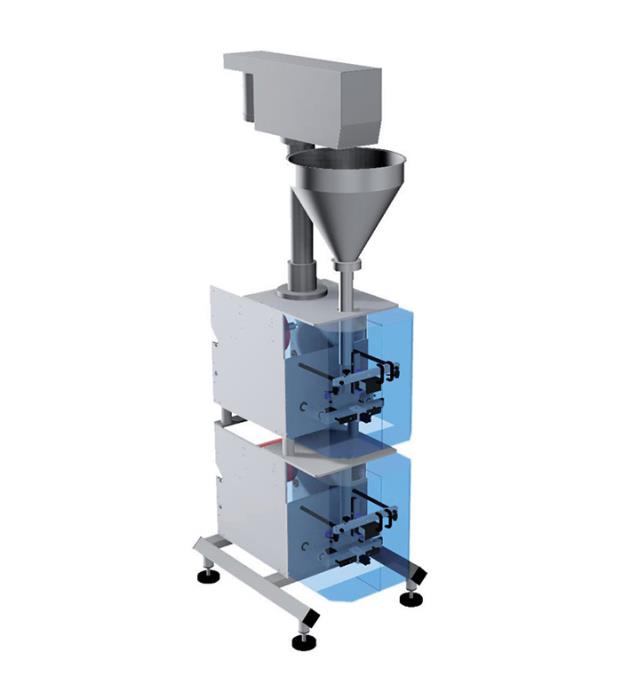

Bag in bag

The system is composed of two form-fill-seal machines vertically connected to achieve a “bag-in-bag” package suitable for cofee pods or any other product requiring double wrapping.

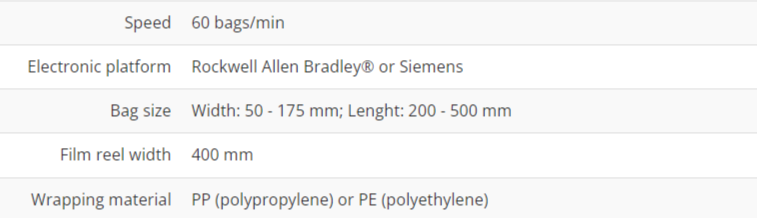

Film width
400 mm
Bag width
50 - 175 mm
Bag lengh
500 - 200 mm
Production speed
60 bags/min

Description

Characteristics

Ask question

  • Stainless steel frame.
  •  Motorised reel holder.
  • End of film detection.
  •  Film pulling unit by toothed drive belts.
  • Encoder-controlled pouch lenght adijustment.
  • Pneumatically activated cross sealing jaws.
  •  Pneumatically activated longitudinal sealing bar.
  •  Impulse sealing system for PE version.
  • PLC thermoregulator for temperature control on OPP version.
  • Rockwell Allen Bradley® or Siemens PLC control unit.
  •  HMI by colour touchscreen.
  • Machine built according to CE regulations.
