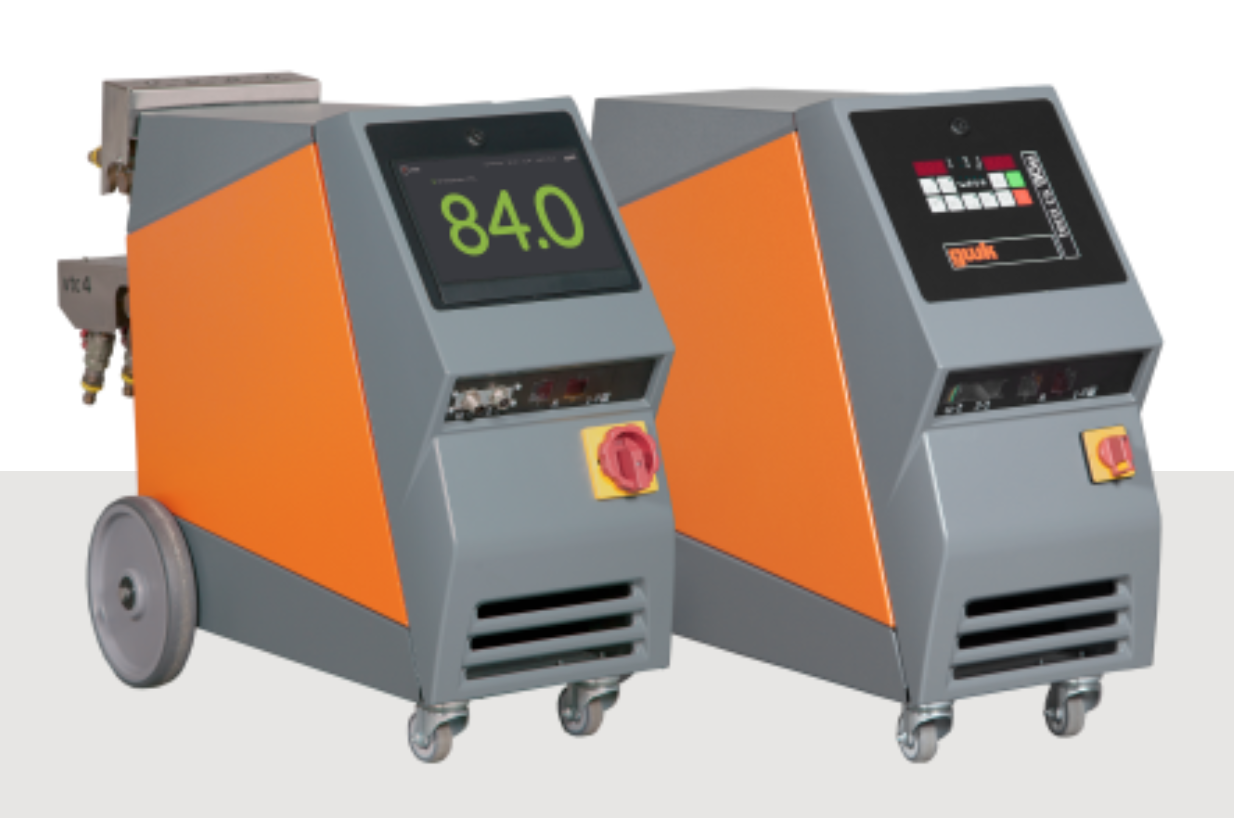

The range of compact tecos thermostats guarantees effective temperature control at water temperatures from 0 °C to 225 °C.
Thermostats are available in various versions with new generation controllers. The basic equipment includes a gwk microprocessor controller with data of the current and required temperature, automatic filling with water, pumping out the mold, constant energy-saving heating. For individual parameters, there are many interfaces with different color and letter designations, the installation of rubber supports or rail runners instead of rollers and other necessary options. In the top-end versions of the gwk control module, various control boards can be freely added.
Description
Characteristics
Ask question

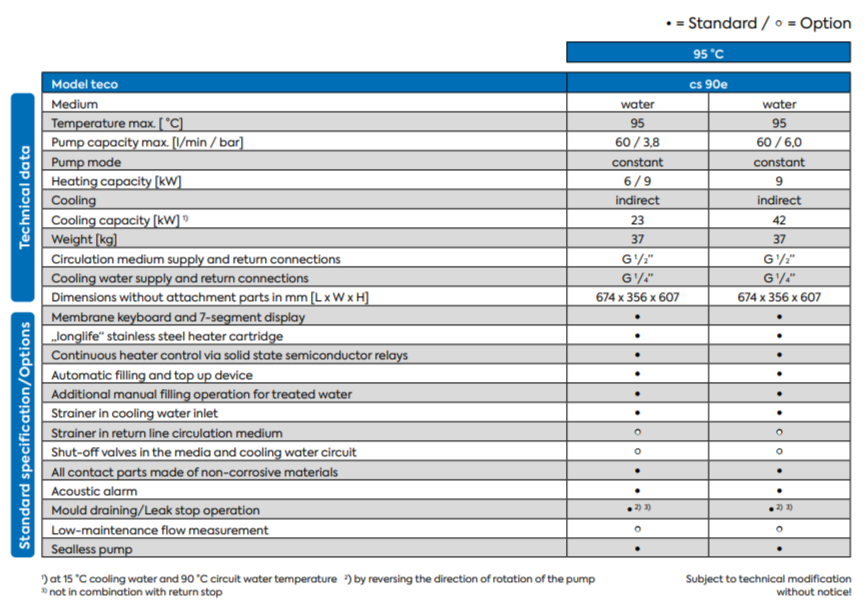

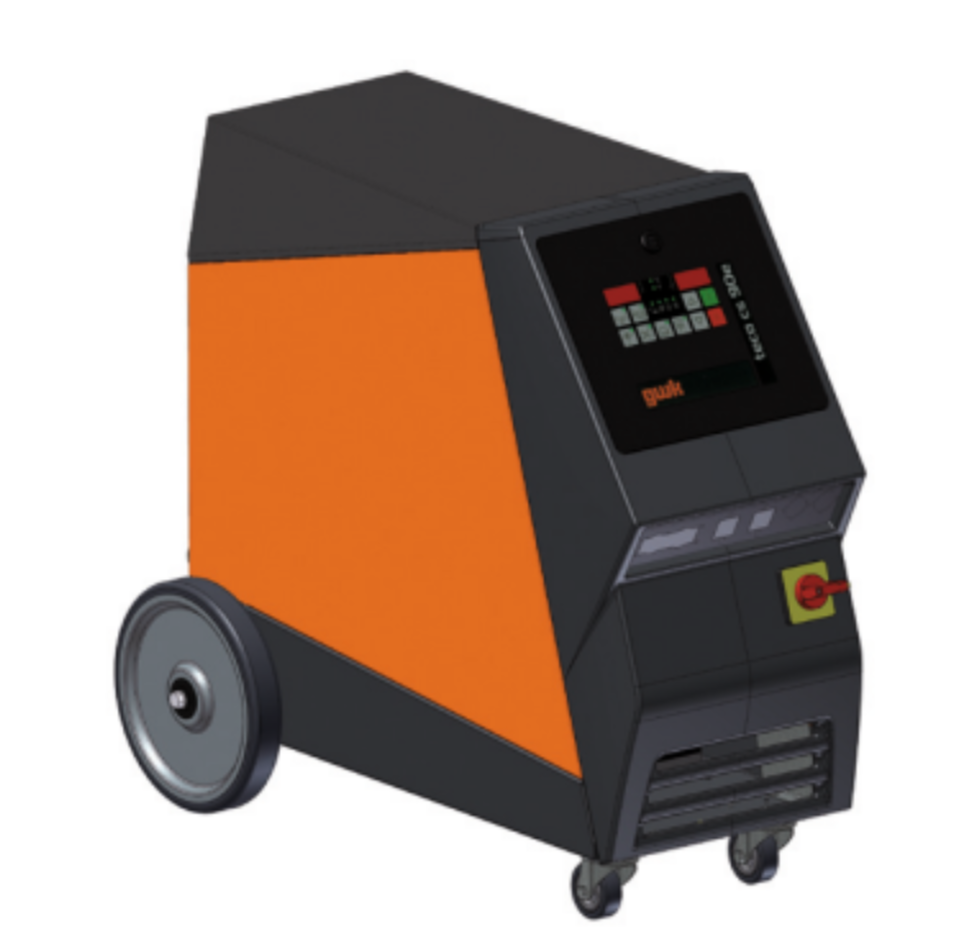

Universal thermostat for injection molding.
• Easy one-button activation and digital display.
• High-precision microcontroller with automatic optimization
• Continuous monitoring of operating parameters
• Wear-resistant solid-state energy-saving heating control
• * Optional external thermocouple connection (Fe-Cu Ni or Pt 100)
• Optional front panel interfaces (analog 0 - 10 V, 0/4 - 20 mA;
serial RS 232, RS 422, RS 485, RTU; Profibus; Profinet)
• Water-resistant electrical equipment
• 3 meter long power cable with CEE connector
• Body and casing color: RAL 7012 basalt grey
• Side panels: RAL 2004 orange

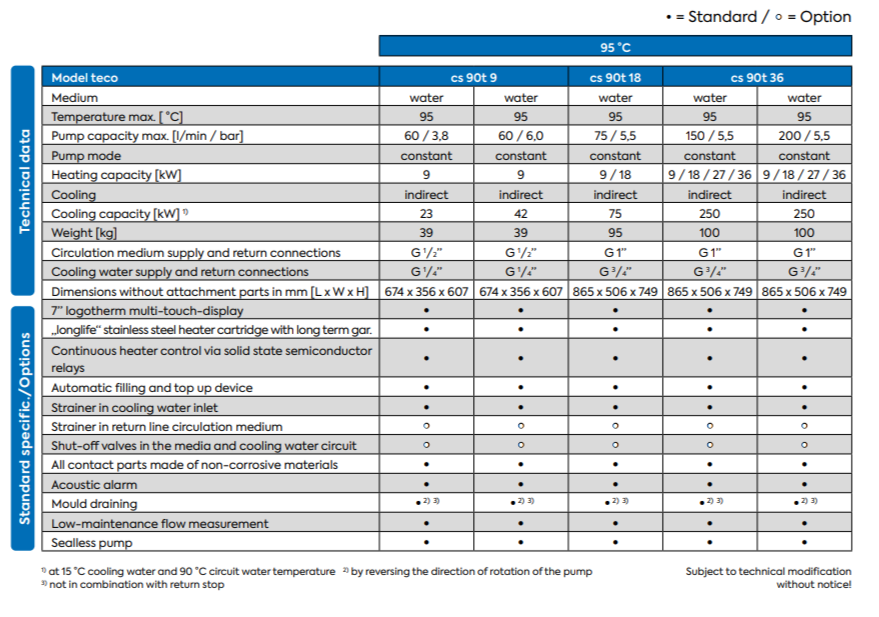

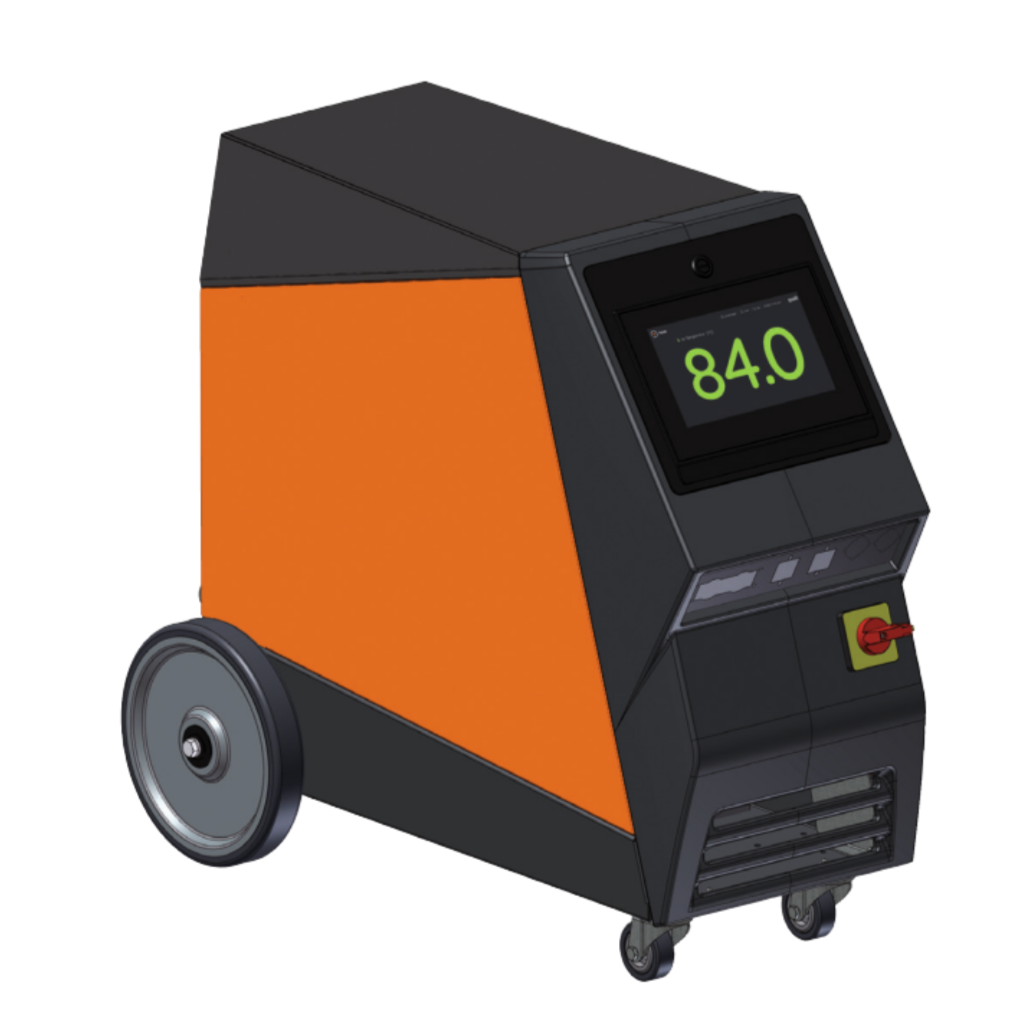

Thermostats for complex applications.
The T-series thermostats are equipped with new compact GWK controllers with a fast 32-bit processor. The controller has an independent display and a logotherm control unit developed by jvc with a 7-inch touch screen, intuitive user interface and intuitive menu navigation.
• * High-precision microcontroller with automatic optimization (version T)

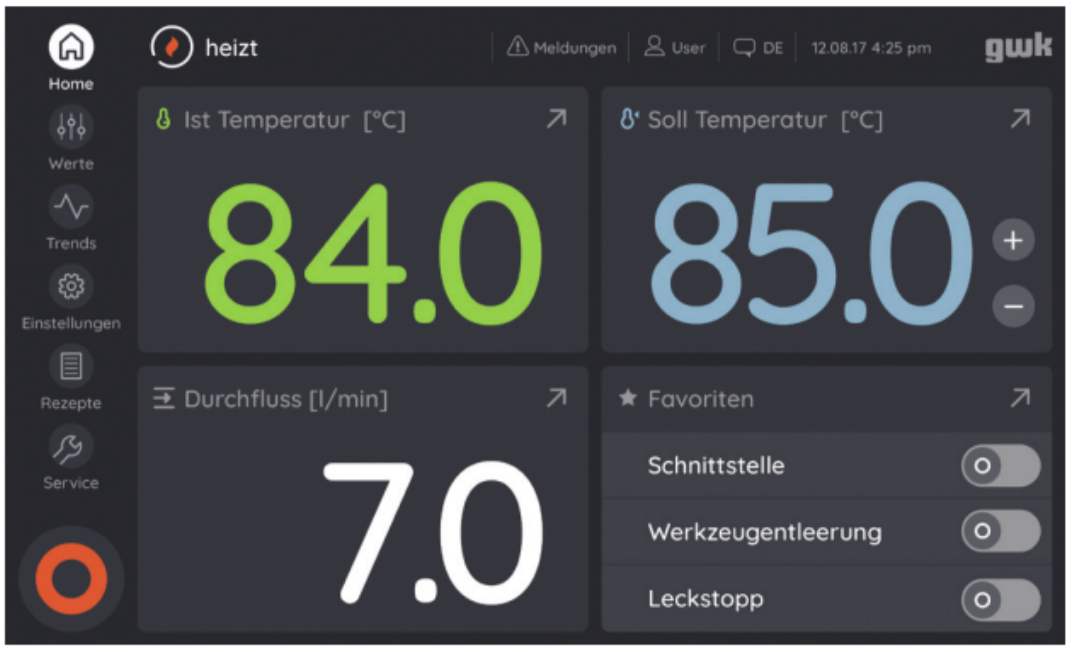

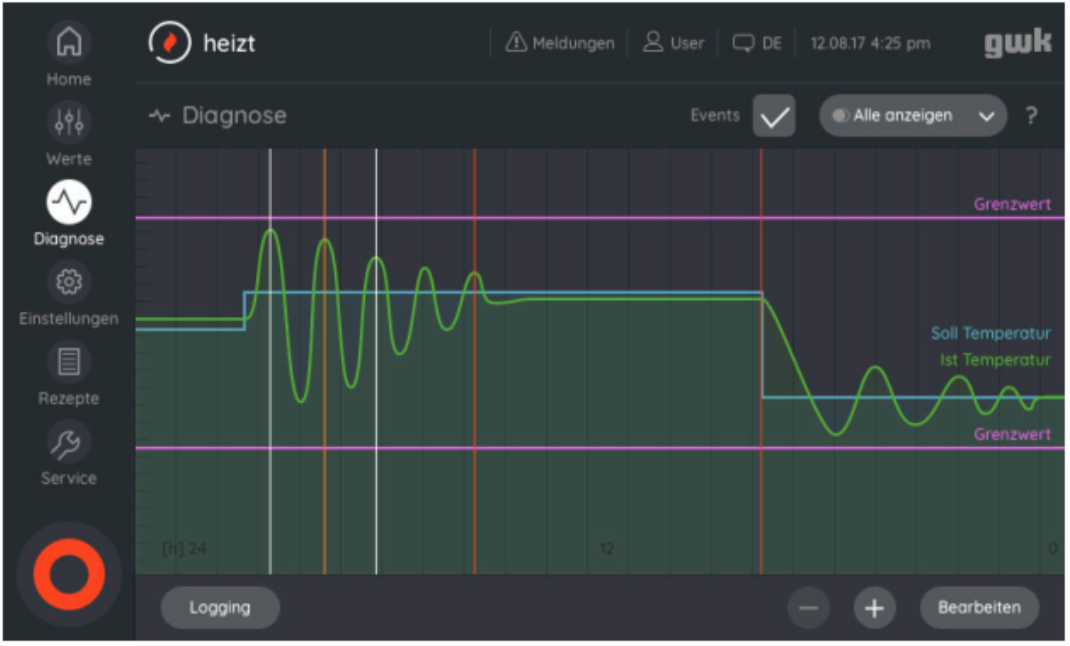

• Touch screen (7-inch) for logging in, managing and monitoring parameters
• Intuitive operating interface with intuitive menu navigation
• Integrated operational and service information
• Measurement, indication and flow tracking
• Saving and resuming operating parameters with a memory card
• Wear-resistant, energy-saving solid-state heating control
• Return water temperature indicator
• Continuous monitoring of operating parameters
• * Optional connection to an external thermocouple (Fe-Cu Ni or Pt 100)
• Optional front panel interface (analog 0 - 10 V, 0/4 - 20 mA; serial
RS 232, RS 422, RS 485, RTU; Profibus; Profinet)
• Water-resistant electrical equipment
• Three meter long power cable with CEE 4 connector
• Housing and cover RAL 7012 grey
• Side panels: RAL 2004 orange

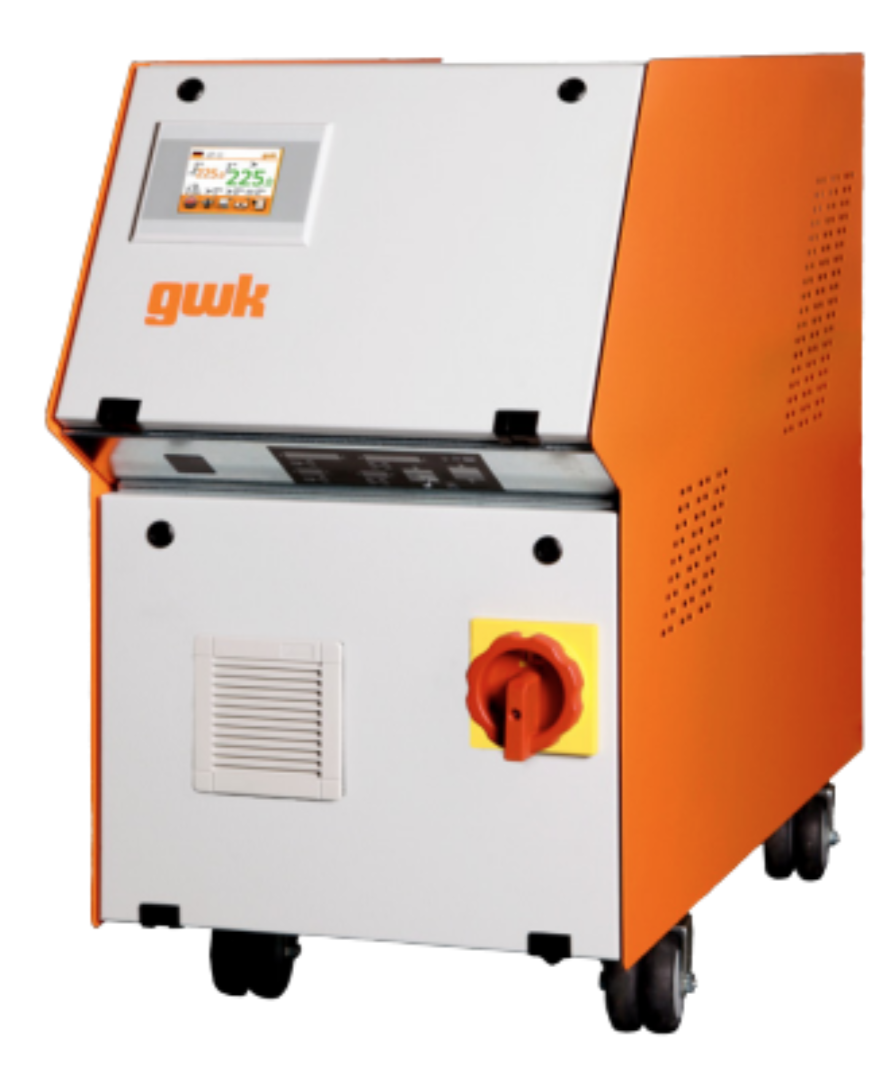

Water thermostat for high temperatures
GWK teco CS 230t 9 thermostats are heating and cooling
devices with indirect cooling, ready for connection and designed to
work with water as a heat carrier. The closed water circuit with automatic
sealing allows you to safely control the temperature up to 225 °C.
• High-precision microcontroller with automatic optimization
• Touch screen (7-inch) for logging in, managing and monitoring parameters
• Intuitive operating interface with intuitive menu navigation
• Integrated operational and service information
• Measurement, indication and flow tracking
• Saving and resuming operating parameters with a memory card
• Wear-resistant, energy-saving solid-state heating control
• Return water temperature indicator
• Continuous monitoring of operating parameters
• Optional connection to an external thermocouple (Fe-CuNi or Pt 100)
• Optional front panel interface (analog 0 - 10 V, 0/4 - 20 mA;
serial RS 232, RS 422, RS 485, TTY; Profibus; Profinet)
• Water-resistant electrical equipment
• Three meter long power cable with CEE connector
• Housing and cover RAL 7012 grey
• Side panels: RAL 2004 orange
