Raptor FlexiPUSH

The new modular shredders are produced in two widths, 800 and 1350 mm. Based on the modular configuration, it is possible to obtain 36 basic configurations that process all types of plastics. Thin films, or light bulk containers – everything turns into chips for further processing.

Quadrangular knife cut QuadCUT.

However, not only the design of the shredder is advanced. The new patented configuration of Rapid Quad CAB knives with four cutting edges on each makes these knives the most durable on the market. The knives are mounted on the rotor with the help of reliable fasteners, including buffer protection, which prevents damage to the rotor in case of accidental ingress of metal and other foreign objects into the crushing chamber.

Attached crusher.

Raptor shredders are designed to work with low-frame crushers of the new Rapid 300-LB series, thereby making up the Raptor DUO processing complex. The processed material at the exit of the shredder enters directly into the crusher

Description

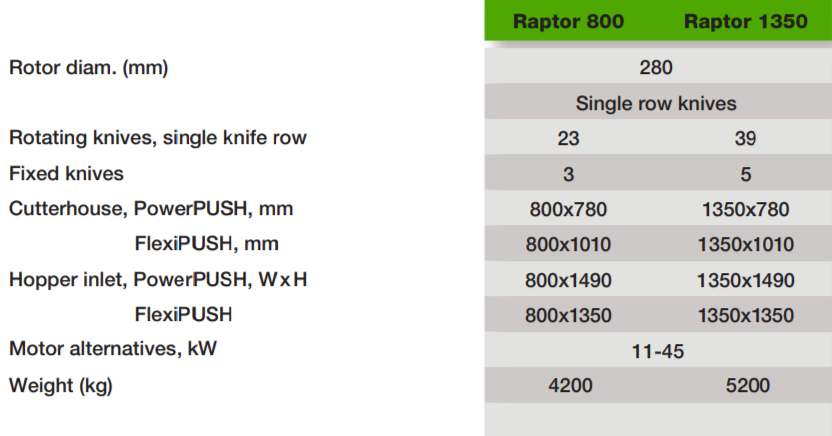

Characteristics

Ask question

Open access technology

The new Raptor shredder series is a striking result of our 75 years of experience in the plastics and crushing industry. The new shredders are innovations, open access technology, a unique patented cutting technique that represents the best recycling solution for plastics on the market using a shredder. Rapid has developed open access technology for crushers. At the moment, Rapid has applied this technology in shredders as well. In less than a minute, the shredder opens, giving full access to the mechanisms of the machine. Cleaning the shredder with full visual control, changing knives without climbing on the car and many other advantages make Raptor shredders unique.

Pusher systems

Pusher with pneumatic or hydraulic drive

The type of pusher is determined depending on the processed material, the required performance and other criteria.In both technologies, hydraulic and pneumatic, protection is provided that softens impacts and protects the machine from damage

Pneumatic pressure pusher FlexiPUSH

A pressure pusher with a pneumatic drive (Flexi PASS) is effectively used in most cases when processing ingots, bulk products, etc. Built-in protection protects the machine from shocks and vibrations.

Quad CUT Configuration

The rotor configuration with Quad CUT technology is the best solution for processing clean or slightly contaminated material. The technology provides a clean cut for most materials.


Raptor Industry 4.0

All Raptors are supplied with PLC-control software that provides monitoring and remote communication. The machine has built-in Wi-Fi, which supports real-time tracking of the recycling process, energy use, warning messages about possible problems and much more.

The instruction sets can be modified and created for each recycled material to optimize power and energy usage according to your requirements.

The specified values depend on the configuration, material, etc.
